Njabulo Stainless, a prominent manufacturer and supplier located in Cape Town, South Africa, focuses on producing top-notch **Stainless Steel 201 Tubing** that’s built to last, resist corrosion, and adapt to a variety of industrial and commercial needs. With a strong dedication to precision in manufacturing and quality control, Njabulo Stainless guarantees that every tubing product adheres to strict performance and reliability standards. The Stainless Steel 201 Tubing is known for its impressive strength and formability, making it ideal for tough environments where affordable and durable solutions are essential. These tubes find extensive use in the construction, automotive, and manufacturing industries, delivering reliable service with minimal upkeep over time.
**Stainless Steel 201 Tubing** is an austenitic stainless steel primarily made up of iron, chromium (16–18%), nickel (3.5–5.5%), and manganese (5.5–7.5%), along with small amounts of nitrogen and carbon. This unique blend offers good corrosion resistance, moderate strength, and excellent formability. In terms of mechanics, 201 Tubing boasts a tensile strength ranging from 515 to 700 MPa, solid yield strength, and enough ductility for bending and shaping. It remains stable at moderate temperatures and shows resistance to oxidation and wear, making it a great fit for a wide array of industrial applications.
| Standard | ASTM, AISI, GB, JIS, customers’ requests available |
| Size | Round Tube: OD: 16-119mm or customized |
| Thickness | 0.25mm-3.0mm |
| Length | 6m or according to customers’ request |
| Sample | Free sample is available, but freight should be paid by you |
| Tolerance | Outer diameter: ±0.2mm |
| Thickness: ±0.05mm | |
| Length: ±0.5mm | |
| Ends | In plain end or bevelled ends or as your requirements |
| Welding Line Type | ERW (Electrical Resistance Weld) |
| Finishing | A. Sanded |
| B. Gloss #400,Mirror #600 – #1000 | |
| C. Brushed | |
| D. Wood Grain | |
| E. Embossed, Threaded | |
| Application | Decorations, constructions, food industry, etc. |
| Certification | ISO, SGS |
| Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |
| Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
| Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
| Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
| Length | 6m or according to customer’s request |
| Outer diameter | 6.35-219mm |
| Tolerance | Outer diameter :±0.2mm |
| Thickness :±0.02mm | |
| Length :±0.5mm | |
| Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
| Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Element | Content (%) |
|---|---|
| Iron, Fe | 72 |
| Chromium, Cr | 16.0 – 18.0 |
| Manganese, Mn | 5.50 – 7.50 |
| Nickel, Ni | 3.50 – 5.50 |
| Silicon, Si | 1.0 |
| Nitrogen, N | 0.25 |
| Carbon, C | 0.15 |
| Type | Yield Strength 0.2% offset (KSI) | Tensile Strength (KSI) | % Elongation (2″ Gauge length) | Hardness Rockwell |
|---|---|---|---|---|
| SS 201 Ann | 38 min. | 75 min. | 40% min. | HRB 95 max. |
| SS 201 ¼ Hard | 75 min. | 125 min. | 25.0 min. | 25 – 32 HRC (typical) |
| SS 201 ½ Hard | 110 min. | 150 min. | 18.0 min. | 32 – 37 HRC (typical) |
| SS 201 ¾ Hard | 135 min. | 175 min. | 12.0 min. | 37 – 41 HRC (typical) |
| SS 201 Full Hard | 145 min. | 185 min. | 9.0 min. | 41 – 46 HRC (typical) |
Contact us to get a quick quote for your requirement.
We provides stainless steel 201 tubing with proper quality assurance by way of strict testing and certification. Every product undergoes thorough inspections in tensile, hardness, and corrosion resistance tests that are all international standards like ASTM and ISO. Being certified for reliability and performance, these tubes ensure durability, safety, and compliance for different industrial and commercial applications.

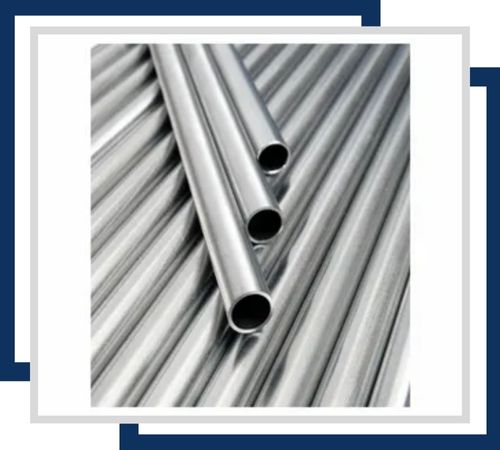

Stainless Steel 201 Seamless Tubing is available in sizes ranging from 1/8″ to 14″ OD. It is known for its excellent corrosion resistance and high mechanical strength. Ideal for high-pressure applications, it ensures a smooth, uninterrupted flow.
Stainless Steel 201 Welded Tubing comes in sizes from 1/8″ to 24″ OD. It offers good corrosion resistance and weldability. Suitable for structural applications and fluid transportation, it is cost-effective compared to seamless tubing.

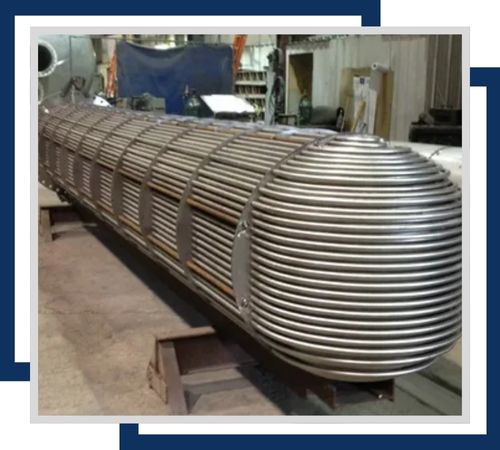

Stainless Steel 201 Heat Exchanger Tubes are available in sizes from 1/8″ to 2″ OD. These tubes exhibit superior corrosion resistance and thermal conductivity. They are essential in applications requiring efficient heat transfer.

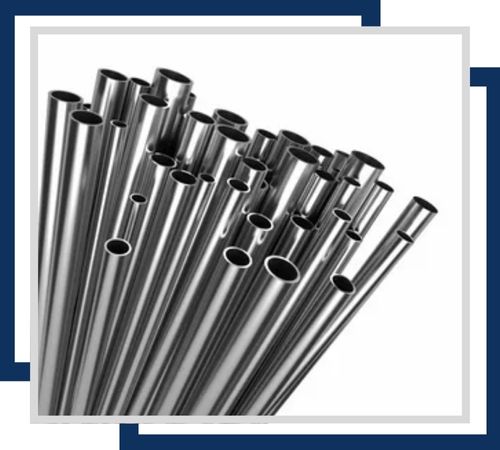

Stainless Steel 201 Instrumentation Tubing is available in sizes from 1/8″ to 1″ OD. It provides excellent corrosion resistance and precise dimensions. Used in control and measurement devices, it ensures accurate performance.

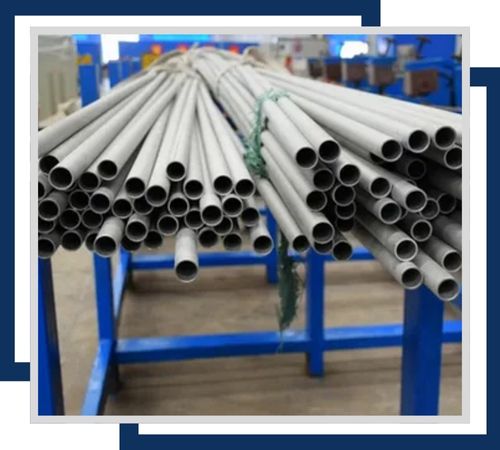

Stainless Steel 201 Boiler Tubes come in sizes from 1/2″ to 5″ OD. They offer high corrosion resistance and strength under high temperatures and pressures. These tubes are crucial for efficient boiler operations in various industries

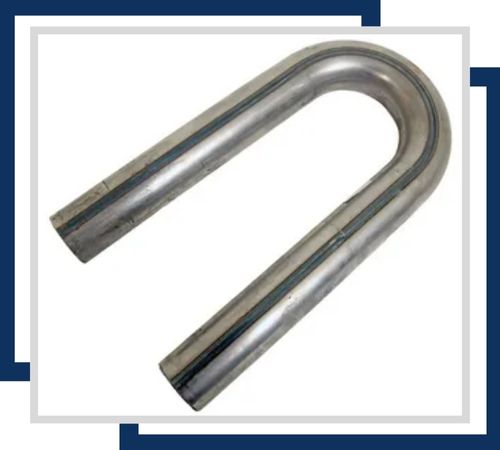

Stainless Steel 201 U-Tubes are available in sizes from 1/4″ to 2″ OD. They exhibit excellent corrosion resistance and are formed in a U-shape for heat exchanger applications. Ideal for compact design requirements in heat transfer systems.

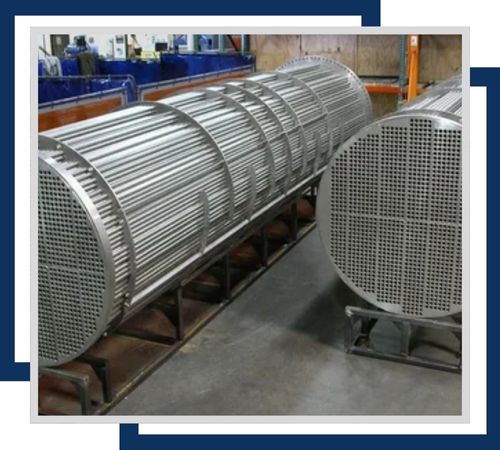

Stainless Steel 201 Condenser Tubes are available in sizes from 1/4″ to 1″ OD. These tubes provide superior corrosion resistance and thermal efficiency. Used in condensers to effectively transfer heat and condense vapors.

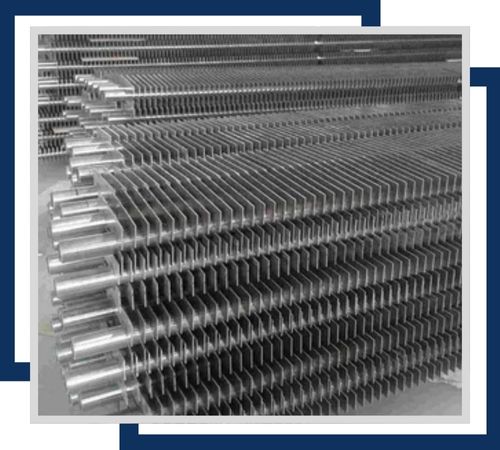

Stainless Steel 201 Fin Tubes come in sizes from 1/2″ to 3″ OD with varying fin heights. They offer excellent corrosion resistance and enhanced heat transfer surface area. Ideal for applications needing improved thermal efficiency
**Stainless Steel 201 Tubing** is a go-to choice for projects that need both corrosion resistance and structural strength without breaking the bank. It’s frequently used in furniture manufacturing, automotive parts, kitchen equipment, and decorative architectural features. The tubing is also perfect for water and fluid transport systems, handrails, and scaffolding due to its durability and ease of fabrication. Moreover, Stainless Steel 201 Tubing is employed in industrial machinery, HVAC systems, and various fabrication projects, providing dependable performance, longevity, and low maintenance in both indoor and outdoor settings.
