Njabulo Stainless, located in Cape Town, South Africa, is a reputable manufacturer and supplier that specializes in high-quality stainless steel products, including Stainless Steel 310H Sheets and Plates. Known for their dedication to quality, precision, and durability, Njabulo Stainless serves a variety of industrial sectors that need top-notch materials. Their 310H Sheets and Plates are designed to endure extreme temperatures and harsh environments, making them a dependable choice for critical applications. With a strong emphasis on customer satisfaction, Njabulo Stainless guarantees timely deliveries, competitive pricing, and technical support, reinforcing its status as a leading provider of stainless steel solutions in South Africa.
The Stainless Steel 310H Sheets and Plates are primarily made up of high levels of chromium (24–26%) and nickel (19–22%), with low carbon content to boost high-temperature strength. This austenitic alloy showcases remarkable oxidation resistance, excellent corrosion resistance, and outstanding thermal stability. On the mechanical side, 310H boasts high tensile strength, good creep resistance at elevated temperatures, and reliable hardness, making it perfect for demanding industrial settings. Its weldability and formability are also impressive, allowing it to be shaped into complex designs without sacrificing structural integrity, ensuring consistent performance in both high-temperature and chemically aggressive environments.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | ASTM, ASME and API |
| Thickness | : | 4.0mm – 100mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | : | SS 310H, (UNS S31009) |
| Grade | Fe | Cr | Ni | Mn | Si | C | P | S |
| SS 310H | – | 26.0-24.0 | 21.0-19.0 | 2.00 | 1.00 | 0.10 | – | 0.030 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | HardnessRockwell B (HR B) max | Hardness Brinell (HB) max |
| 310H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

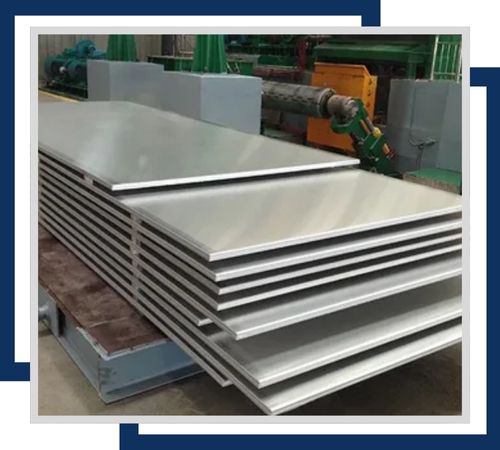

Stainless Steel 310H Hot Rolled Sheets are known for excellent high-temperature corrosion resistance. These are generally available in 2mm to 50mm thickness and widths up to 2000mm and are suitable for structural applications that require strength and durability.

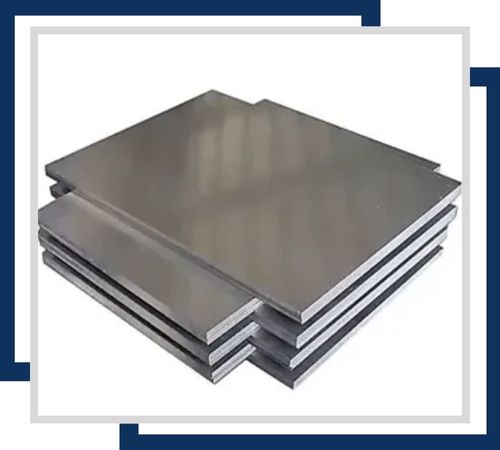

The plates are high in corrosion resistance and the surface finish is even. They come in the thickness range of 0.5mm to 6mm and 1500mm widths. They can be used in applications requiring precise dimensions and higher surface quality.

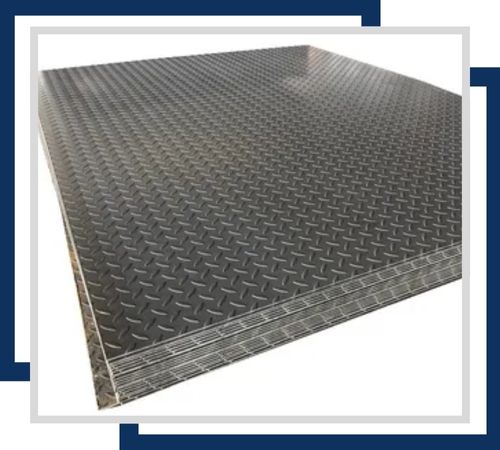

Stainless Steel 310H Chequered Plates have improved slip and high-temperature corrosion resistance. They are available in 3mm to 12mm in thickness and widths up to 1250mm. The product is excellent for flooring and high-traction applications.

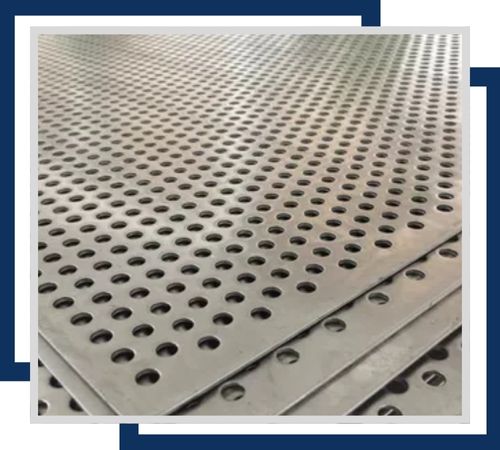

Stainless Steel 310H Perforated Sheets offer high corrosion resistance with customized hole patterns for filtration and ventilation. The sheet sizes are generally available in 0.5mm to 6mm in thickness and up to 2000mm in width. It is used in industrial and architectural applications.

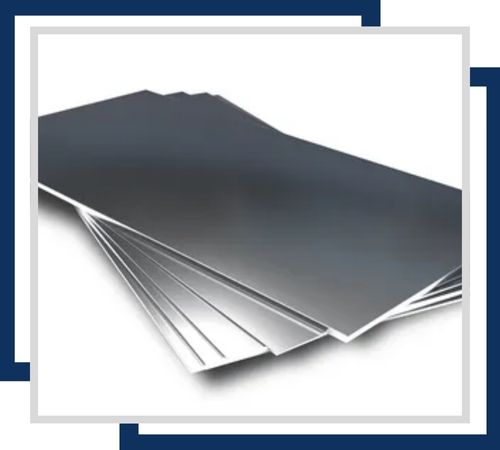

Stainless Steel 310H Shim Sheets are known for their excellent corrosion resistance at high temperatures and are used for spacing and alignment applications. The range of thickness offered is from 0.1mm to 2mm and sizes up to 1000mm x 2000mm, which offers flexibility in application.

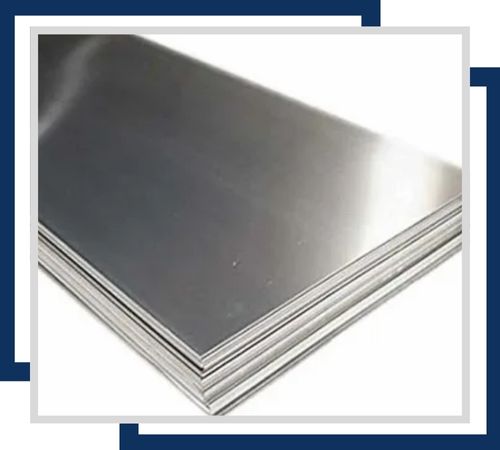

The stainless steel 310H polished plates feature high-temperature corrosion resistance with a mirror-like finish. Available in thicknesses from 1mm to 25mm and widths up to 1500mm, these plates are used in decorative and high-visibility applications where aesthetic quality is important.
Njabulo Stainless promises its customers a hassle-free experience. We offer our customers all the documents they require for the purchase of high-quality Stainless Steel 310H Sheets and Plates. We offer the following necessary documents: commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test reports, thus making our products authentic and superior. In addition, our Stainless Steel 310H Sheets and Plates are provided with several test certificates like MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. Such certificates highlight the commitment towards customers’ satisfaction as well as continued efforts toward the achievement of excellence in product quality.
Stainless Steel 310H Sheets and Plates find extensive use in industries like petrochemical, power generation, furnace and boiler construction, heat exchangers, and chemical processing. Their capability to withstand temperatures up to 1100°C makes them ideal for furnace components, kiln linings, and heat treatment equipment. Additionally, 310H Sheets and Plates are utilized in architectural applications that require both corrosion resistance and aesthetic appeal. They are also employed in aerospace, automotive, and food processing industries where high-temperature performance and durability are crucial.
