Njabulo Stainless, located in Cape Town, South Africa, has earned a solid reputation as a reliable manufacturer and supplier of top-notch stainless steel fasteners. With a strong focus on precision, durability, and performance, they provide a diverse array of products tailored to meet the needs of various industrial and commercial sectors. Among their standout offerings, the Stainless Steel 316Ti Fasteners are particularly noted for their exceptional corrosion resistance, impressive strength, and ability to endure extreme temperatures. Meticulously crafted to high standards, these fasteners guarantee reliability in tough environments, making Njabulo Stainless the go-to choice for clients in search of durable, high-performance fastening solutions across multiple industries.
The Stainless Steel 316Ti Fasteners are primarily made of iron, featuring notable amounts of chromium (16–18%), nickel (10–14%), and a stabilizing element, titanium (0.5%). This addition of titanium helps prevent carbide precipitation during welding, boosting both high-temperature stability and corrosion resistance. These fasteners boast remarkable mechanical properties, including high tensile strength, hardness, and resistance to stress corrosion cracking. They maintain their structural integrity even under thermal cycling and in harsh chemical environments. The blend of strength and corrosion resistance ensures that 316Ti fasteners perform reliably in demanding industrial settings, such as marine, chemical, and petrochemical applications, where longevity and safety are paramount.
| Standard | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Bolt / Screw Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Nuts Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Machine Screws Size | M1.6 – M12 |
| Self Tapping Screw Size | No.2 – No. 14 |
| Length | 3 mm to 200 mm |
| Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

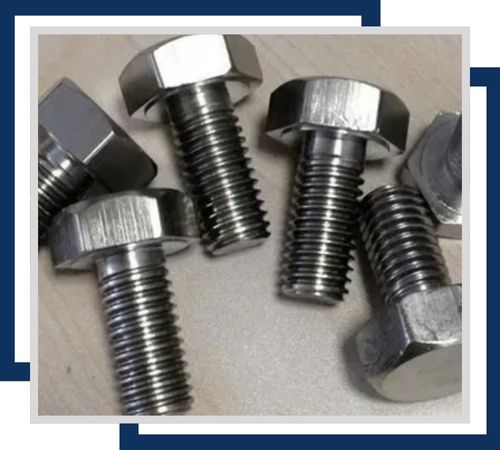

Corrosion-resistant and highly durable, Stainless Steel 316Ti Bolts are ideal for high-temperature and marine applications. Available in sizes ranging from M6 to M30, with lengths up to 300 mm. They offer excellent resistance to pitting and crevice corrosion.

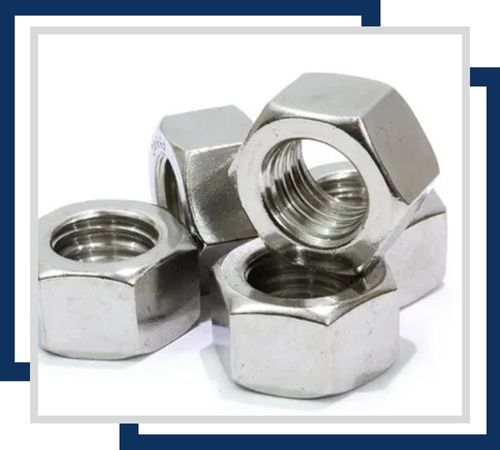

SS 316Ti Nuts are designed for exceptional corrosion resistance, especially in chloride environments. Typically available in sizes from M6 to M30, with various thread pitches. They complement 316Ti bolts and are used in high-temperature and aggressive environments.

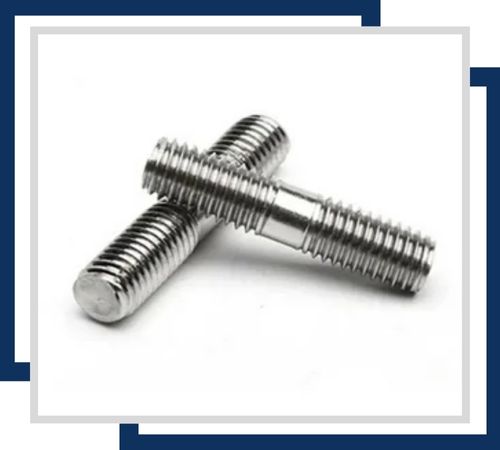

Offering superior resistance to corrosion and high strength, these Stud Bolts come in sizes from M6 to M30, with lengths ranging from 50 mm to 300 mm. Ideal for use in severe service conditions where high tensile strength is needed.

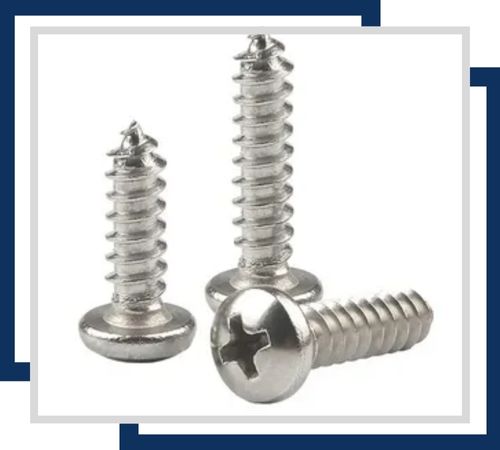

Known for their corrosion resistance, these screws are used in marine and industrial applications. Available in sizes from M2 to M20, with lengths up to 200 mm. They provide reliable performance in environments exposed to chemicals and saltwater.

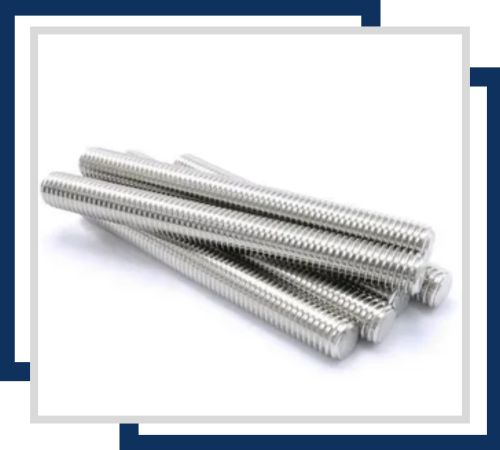

Corrosion-resistant and high-strength, these rods are available in diameters from M6 to M30 and lengths up to 3 meters. They are used in construction and industrial applications where resistance to harsh environments is critical.

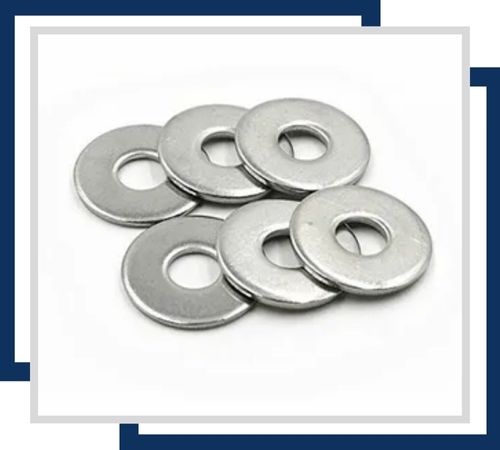

Offering excellent resistance to corrosion, these washers are available in sizes from M6 to M30. They ensure even load distribution and prevent damage to surfaces. It is ideal for use with 316Ti bolts and nuts in aggressive environments.
Our expertise in packaging Stainless Steel 316Ti fasteners carefully in Cape Town and South Africa. While considering wooden boxes, pallets, and eco-friendly packing materials, we are very meticulous in using high-quality standards industrial packaging material. The procedure is carried out in a dust-free environment to maintain cleanliness from dirt, dust, or any other foreign materials that compromise product quality. These fasteners are prepared for shipping once careful attention has been paid to all details. They reach customers in excellent condition, regardless of distance.
Stainless Steel 316Ti Fasteners find extensive use in industries that frequently encounter corrosive environments, high temperatures, and mechanical stress. They are perfect for chemical processing plants, marine equipment, power generation, and food processing facilities. These fasteners are commonly used in pipelines, heat exchangers, pumps, and structural assemblies that require long-lasting durability. Their resistance to chloride-induced corrosion makes them an excellent choice for coastal and offshore installations. Engineers and designers appreciate their reliability and performance in challenging conditions.
