Njabulo Stainless stands out as a top-notch manufacturer and supplier of Stainless Steel 310H Flanges right in Cape Town, South Africa. They offer flanges that are not just premium-quality but also built to withstand high temperatures, ensuring durability and resistance to corrosion. Crafted from a special blend of high-chromium, high-nickel austenitic stainless steel with a bit more carbon, these flanges excel in resisting oxidation and scaling, even in extreme heat. Perfect for industries like chemical processing, petrochemicals, power generation, and high-temperature piping systems, Njabulo Stainless guarantees precision in manufacturing and rigorous quality control, delivering flanges that meet international standards for long-lasting reliability and performance in tough industrial settings.
Stainless Steel 310H Flanges are made up of chromium (24–26%), nickel (19–22%), iron, and a higher carbon content (0.08–0.25%) to boost their high-temperature strength. This alloy boasts a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 35%, ensuring they are mechanically stable and durable. With a density of 8.0 g/cm³ and a melting range of 1390–1420°C, SS 310H Flanges maintain their structural integrity, resist scaling, and perform reliably in high-temperature and corrosive industrial environments.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.10 | 2.00 | 1.00 | 0.045 | 0.030 | 26.0 | 21.0 | |||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 310H Flanges- Njabulo Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Njabulo Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

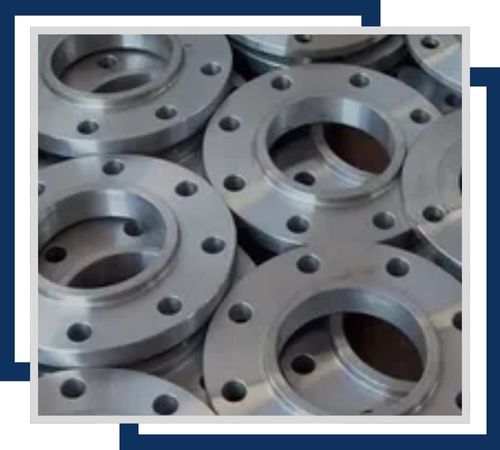

SS 310H long weld neck flanges are robust stainless steel fittings designed for high-pressure applications. Their extended neck provides strength and stability, making them ideal for critical, high-temperature environments.

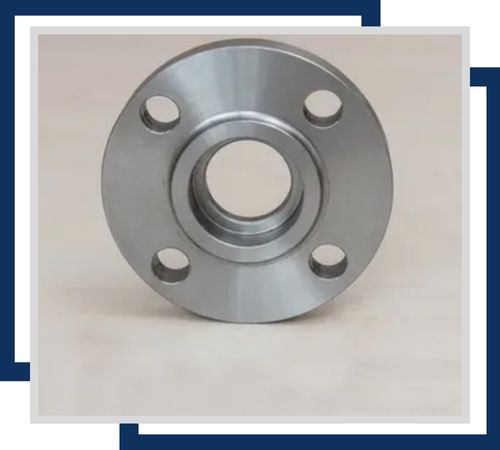

SS 310H lap joint flanges are versatile stainless steel components designed for ease of assembly and disassembly. They offer excellent resistance to high temperatures and corrosion, making them ideal for dynamic applications.

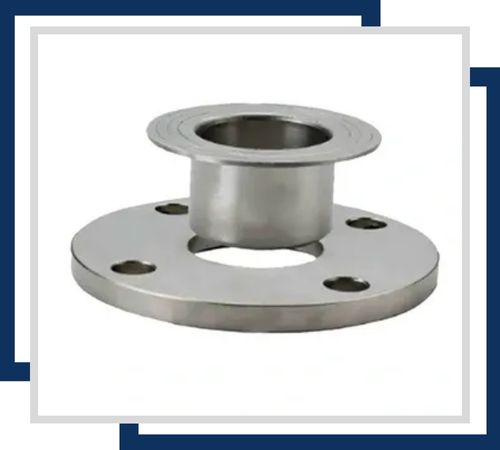

SS 310H reducing flanges facilitate the transition between different pipe sizes in high-temperature systems. Made from stainless steel, they offer exceptional strength and corrosion resistance, ensuring reliable performance under demanding conditions.
Stainless Steel 310H Flanges are a go-to choice in industries that demand high-temperature performance, oxidation resistance, and secure piping connections. They shine in applications like furnace components, heat exchangers, industrial ovens, kilns, chemical processing plants, and power generation facilities. These flanges are built to handle extreme thermal cycling and corrosive conditions, ensuring they maintain their structural integrity and durability over time. Thanks to their elevated carbon content, they offer enhanced mechanical strength at high temperatures. Njabulo Stainless provides 310H Flanges that ensure secure connections, dependable performance, and a long service life, making them a smart choice for demanding applications.
