Njabulo Stainless is a reputable manufacturer and supplier of top-notch Stainless Steel 309S Bars, proudly based in Cape Town, South Africa. With a strong focus on precision engineering and a commitment to quality, Njabulo Stainless serves a diverse array of industries by offering corrosion-resistant and heat-resistant stainless steel solutions. The company skillfully blends advanced manufacturing techniques with rigorous quality control to ensure their products meet both local and international standards. Known for their reliability and excellence, Njabulo Stainless has become the preferred choice for Stainless Steel 309S Bars in Cape Town, catering to sectors such as petrochemical, construction, energy, and marine industries.
The Stainless Steel 309S Bars produced by Njabulo Stainless are primarily composed of chromium (22–24%) and nickel (12–15%), featuring low carbon content to improve weldability and minimize carbide precipitation. This alloy is celebrated for its outstanding oxidation resistance and high-temperature strength, making it perfect for environments that experience intense heat. In terms of mechanical properties, it boasts a tensile strength of around 550 MPa, a yield strength of approximately 205 MPa, and an elongation of 40%, along with a Brinell Hardness of 147 HB. These characteristics make 309S Bars ideal for demanding structural and industrial applications.
| SS 304 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
|---|---|
| Stainless Steel 304 Square bar size | 4 to 100mm |
| Stainless Steel 304 Channel Bar | 5.0 to 6.0mm thickness, 80 x 40mm to 150 x 75mm section |
| SUS304 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| SS 304 Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Stainless Steel 304 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| ASTM A276 Type 304 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Stainless Steel 304 Material Grade | Stainless Steel 304 (UNS S30400) |
| Stainless Steel 304 Square Bar Dimensions | DIN, EN, ASME, BS, ASTM, JIS, AISI |
| SS 304 Standard | ASTM A479, AMS 5513, ASTM A276, AMS 5511, AMS 5647 |
| Stainless Steel 304 Hex Bar size | 2-100mm A/F |
| Stainless Steel 304 Round bar size | Diameter: 3-~800mm |
| SUS304 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| ASTM A276 Type 304 Hollow Bar Tolerance | H8 to H12, H13K9, K10 to K12 or as per clients’ requirements |
| 304 SS Hex Bars Finish | Cold (bright) drawn, smooth turned, peeled, centreless ground, hot rolled, slit rolled edge, Bright, Polish, Grinding, Centreless Ground & Black,hot rolled annealed, Rough Turned |
| SUS304 T-Bar Surface | Bright, Sand Blasting Finished, Hot Rolled Pickled, Cold Drawn, Hairline,Polished |
| Rolled Stainless Steel 304 Flat Bars Condition | annealed, Hardened & tempered |
| ASTM A276 Type 304 Cold Rolled Bar Technique | 304 Stainless Steel Cold Drawn, Cold Rolled, Rod, Hot Rolled, Forged Round Bar |
| SS 304 Rod Processing | Bar cutting to 650mm |
| 304 Stainless Steel Round Bar Form | Rod, Round, Channel Bar, Rings, Round Rod, Triangle, Hollow, Rectangle, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
| Element | SS 304 |
| Ni | 8.0 – 10.5 |
| C | 0.08 |
| Mn | 2.0 max |
| P | 0.045 max |
| S | 0.030 max |
| Si | 0.75 max |
| Cr | 18.0 – 20.0 |
| Mo | – |
| N | 0.10 |
| Element | SS 304 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Rockwell B (HR B) max Hardness | 92 |
| Brinell (HB) max Hardness | 201 |
Contact us to get a quick quote for your requirement.
We ensures the premium quality Stainless Steel 304 Bars through the processes of strict testing as well as certification of its products. It undertook a wide range of quality tests on the bars, including tensile strength, hardness, and corrosion resistance, to earn the product’s qualification for international standards. Hence, it is recognized by ISO and other regulatory bodies for its promise of reliability, durability, and strict adherence to industry specifications to address all application needs.

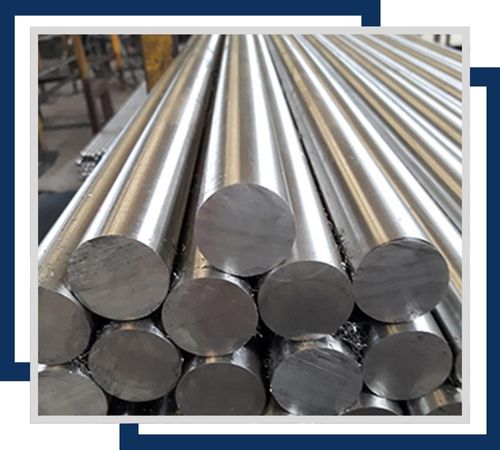

Offering corrosion resistance, stainless steel 304 round bars are available in sizes ranging from 5mm to 300mm. These rods are used in construction and automotive engineering because of their durability and durability.

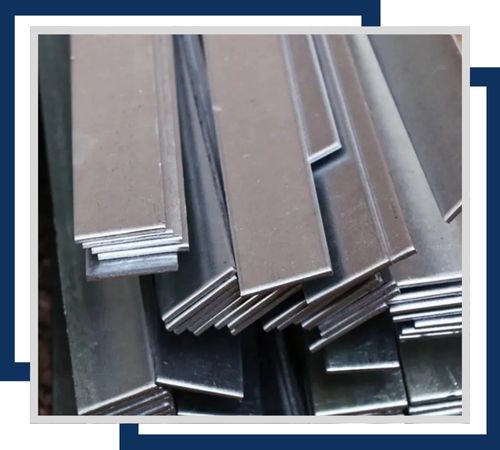

Stainless steel 304 flat bars excel in corrosion resistance and come in thicknesses from 3 mm to 50 mm and widths up to 300 mm. They excel in a variety of construction, manufacturing, and construction applications.

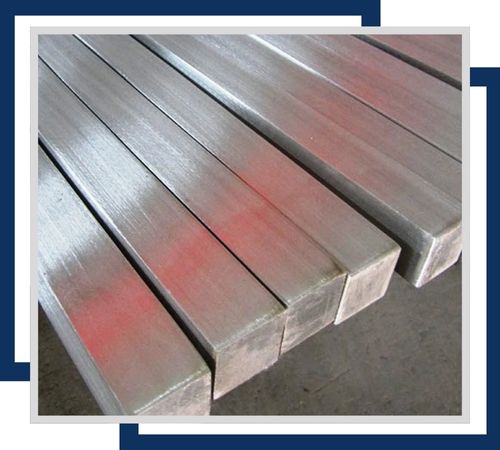

Known for their corrosion resistance, the stainless steel 304 squares range in size from 5mm to 100mm. These bars are used in construction, building and construction where strength and durability are required.

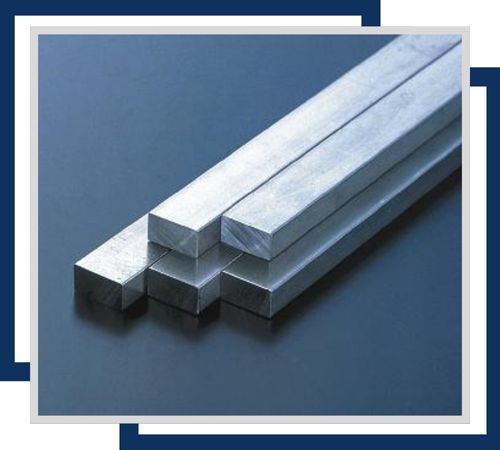

Stainless steel 304 rectangular bars provide excellent corrosion resistance and are available in sizes from 10mm x 20mm to 100mm x 300mm. It is used in structural supports, frames and various industrial applications.

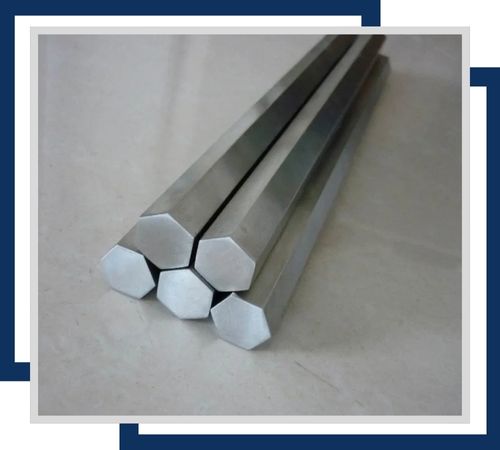

High corrosion resistance stainless steel 304 hexagonal bars are available in flats ranging in thickness from 10mm to 100mm. These bars are used in architecture, aerospace, and construction due to their unique shape and strength.

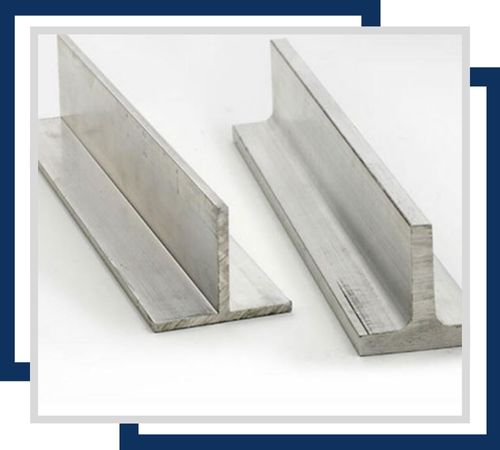

Stainless steel 304 T-bars provide excellent corrosion resistance and are available in sizes ranging from 10mm x 10mm to 100mm x 100mm. It is commonly used in support structures, cladding, and special construction projects.
Njabulo Stainless’s 309S Bars find extensive use in industries that require high strength and resistance to extreme heat and corrosion. Common applications include furnace components, heat exchangers, kilns, chemical processing equipment, and boiler baffles. The alloy’s capability to endure thermal cycling and oxidation up to 1000°C makes it suitable for power plants, refineries, and marine settings. Moreover, the low carbon content of 309S enhances weldability, making it a great choice for fabrication projects and pressure vessels. Whether for heavy-duty industrial use or custom-engineered solutions, Njabulo Stainless provides versatile bars that meet the needs of various demanding applications.
