Njabulo Stainless is a trusted manufacturer and supplier of Stainless Steel 309 Bars, proudly based in Cape Town, South Africa. With a strong emphasis on quality and durability, Njabulo Stainless provides a variety of 309 stainless steel bars in different shapes, such as round, square, flat, and hex bars. These bars are specifically designed to withstand high temperatures and corrosive environments, making them ideal for industries like petrochemical, furnace manufacturing, power generation, and thermal processing. The company is dedicated to meeting international standards and ensuring customer satisfaction, guaranteeing that their products fulfill the rigorous demands of industrial applications.
Stainless Steel 309 Bars are made from an austenitic stainless steel alloy that contains around 22–24% chromium and 12–15% nickel. This unique blend offers outstanding resistance to oxidation and scaling at temperatures reaching up to 1093°C (2000°F). These bars boast impressive mechanical properties, including a tensile strength of approximately 550 MPa and excellent creep resistance. They also maintain their stability and strength during thermal cycling. The alloy’s ability to resist corrosion in both oxidizing and mildly reducing environments makes it a dependable choice for structural components that are exposed to high heat.
| Specifications | ASTM A276, ASTM A479 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 309 Round Bars | Outside Diameter in the range of 4mm to 500mm |
| SS 309 Bright Bars | Outside Diameter in the range of 4mm to 100mm |
| SS 309 Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| SS 309 Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) |
| SS 309 Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm, Custom Size Stainless Steel Flats available |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Element | Content (%) |
Iron, Fe | 60 |
Chromium, Cr | 23 |
Nickel, Ni | 14 |
Manganese, Mn | 2 |
Silicon, Si | 1 |
Carbon, C | 0.20 |
Phosphorous, P | 0.045 |
Sulfur, S | 0.030 |
Properties | Metric | Imperial |
Tensile strength | 620 MPa | 89900 psi |
Yield strength (@ strain 0.200%) | 310 MPa | 45000 psi |
Izod impact | 120 – 165 J | 88.5 – 122 ft-lb |
Shear modulus (typical for steel) | 77 GPa | 11200 ksi |
Elastic modulus | 200 GPa | 29008 ksi |
Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
Elongation at break (in 50 mm) | 45% | 45% |
Hardness, Brinell | 147 | 147 |
Hardness, Rockwell B | 85 | 85 |
Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
Contact us to get a quick quote for your requirement.
We carries out rigorous performance tests on complete batches of Stainless Steel 309 Bars with regards to chemical composition, mechanical properties, and the degree of corrosion resistance. Our products are certified by recognized authorities regarding conformity to international standards for ensuring reliability and consistency with every delivery.

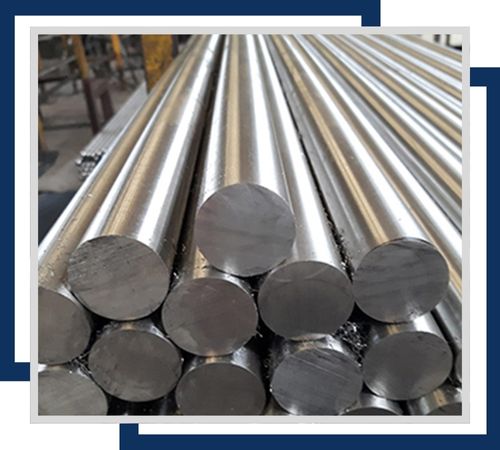

Stainless Steel 309 Round Bars offer excellent corrosion resistance and are available in diameters ranging from 6 mm to 200 mm. Ideal for high-temperature applications and structural uses, they ensure durability and strength.

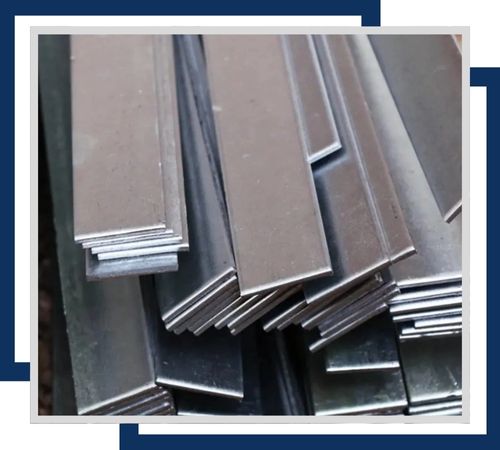

Featuring good corrosion resistance, Stainless Steel 309 Flat Bars come in widths from 20 mm to 150 mm and thicknesses from 5 mm to 50 mm. These bars are used in construction, manufacturing, and industrial applications for their thermal stability.

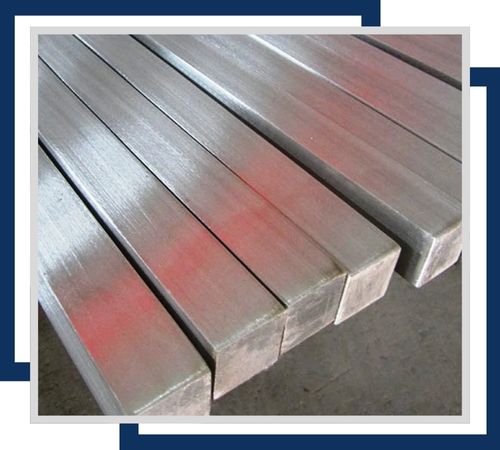

Known for their corrosion resistance, Stainless Steel 309 Square Bars are available in sizes from 10 mm to 100 mm. They are utilized in various structural and industrial applications where strength and heat resistance are required.

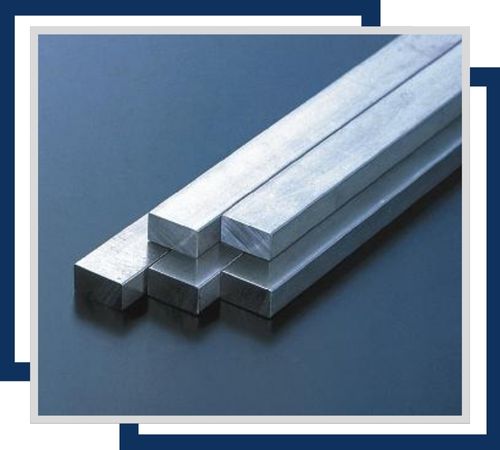

Stainless Steel 309 Rectangular Bars provide corrosion resistance and are offered in dimensions like 20 mm x 10 mm to 150 mm x 50 mm. These bars are suitable for use in high-temperature environments and structural applications.

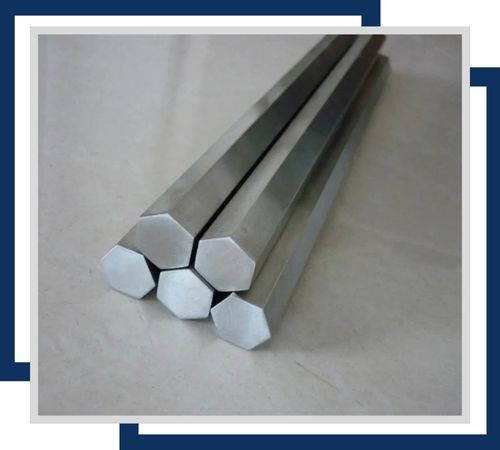

Offering corrosion resistance, Stainless Steel 309 Hexagonal Bars are available in sizes ranging from 6 mm to 50 mm across flats. They are often used in machining, fabrication, and for applications requiring heat resistance.

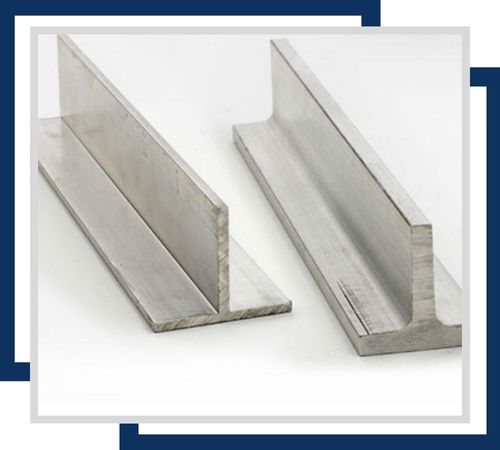

Stainless Steel 309 T-Bars are known for their high-temperature resistance and oxidation resistance. Available in sizes ranging from 15 mm x 15 mm x 6 mm to 100 mm x 100 mm x 12 mm, they are used in industrial applications such as heat exchangers and furnace components, providing durability and strength in extreme conditions.
Stainless Steel 309 Bars find their place in various applications where high-temperature strength, corrosion resistance, and structural integrity are crucial. They are commonly used in furnace parts, heat exchanger tubes, kiln supports, power plant components, and exhaust systems. These bars excel in environments that experience frequent temperature changes and exposure to hot gases or corrosive chemicals. Their remarkable weldability and formability further enhance their adaptability in manufacturing and fabrication processes. In summary, 309 stainless steel bars deliver long-lasting performance and reliability in demanding thermal and industrial settings.
